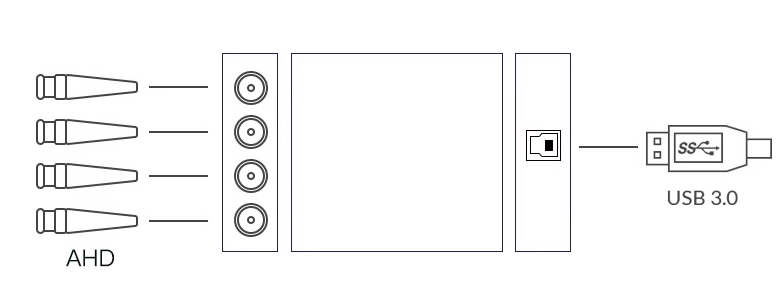

4CH 720P AHD to USB 3.0 Capture Card UVC Playback Card for Live Streaming

4CH 720P AHD to USB 3.0 Capture Card UVC Playback Card for Live Streaming

SKU: 100

Please Note: this Video Capture Card only supports 720p camera input, and it is not compatible with 1080p camera.


Product Feature:

4CH  AHD video input

Video signal input: 720p

UVC compatible video capture

YUV422 video output

Works on Windows OS, Mac OS, Linux OS & also supports Andriod

Plug & Play

No driver needed

Ultra low power consumption

No adapter

Power from USB



Interface                             : USB3.05Gb/s bandwidth

Video Interface                   : BNC

AHD Video Input                : 4 CH AHD Video signal



AHD Input Format                : AHD 720p

Bite rate                               : 5Gb/s

Video Capture                      : compliance with UVC (USB video class)

Audio Capture                      : No

Output Color                        : YUY2



Operating Systems               : Windows XP/7/8.1/10,Mac OS,Linux

Software                               : Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wirecast VMIX… etc.

API                                       : DirectShow (Windows),UVC API

Power consumption             : <= 1.0 W

Work Temperature                : 0-50 degree centigrade

Storage Temperature            : -20-70 degree centigrade

Storage humidity                  : 5%-90%
